詳情介紹
SKLN系列逆流式冷卻器
SKLN Series Cooler
產品優勢
PRODUCT ADVANTAGE
1、利用逆流冷卻原理對高溫、高濕的顆粒進行冷卻，避免了冷風與熱料直接 接觸而產生驟冷現象，因而能防止顆粒產生表面開裂。
2、新八角型冷卻箱體設計，無冷卻死角。
3、采用閉風器進料，進風面積大，冷卻效果顯著。
4、 采用滑閥往復式排料機構，運動平穩、可靠，殘留小。
5、能耗低、操作簡便。
6、冷卻后成品溫度不高于室溫+3°C?5°C，適用于顆粒物料的冷卻。
7、 也有翻板式排料機構的卻器可供選擇，采用液壓驅動的排料機構，多用于膨化、 膨脹料的冷卻。
1. The counter-current cooling principle is used to cool the high-temperature and high-humidity particles, which avoids the sudden cooling phenomenon caused by the direct contact between cold air and hot materials, thus preventing the surface cracking of particles.
2. the latest octagonal cooling box design, no cooling dead angle.
3. Adopting the air-closing device to feed, the air-feeding area is large, and the cooling effect is remarkable.
4. Adopt the slide valve reciprocating discharging mechanism, the movement is stable, reliable, the residue is small.
5. Low Energy consumption, easy operation.
6. The temperature of the finished product after cooling is not higher than room temperature + 3 °C - 5 °C, which is suitable for the cooling of granular materials.
7. There is also a switch-type discharge device to choose from, using hydraulic-driven discharge mechanism, mostly used for expansion, expansion of material cooling.

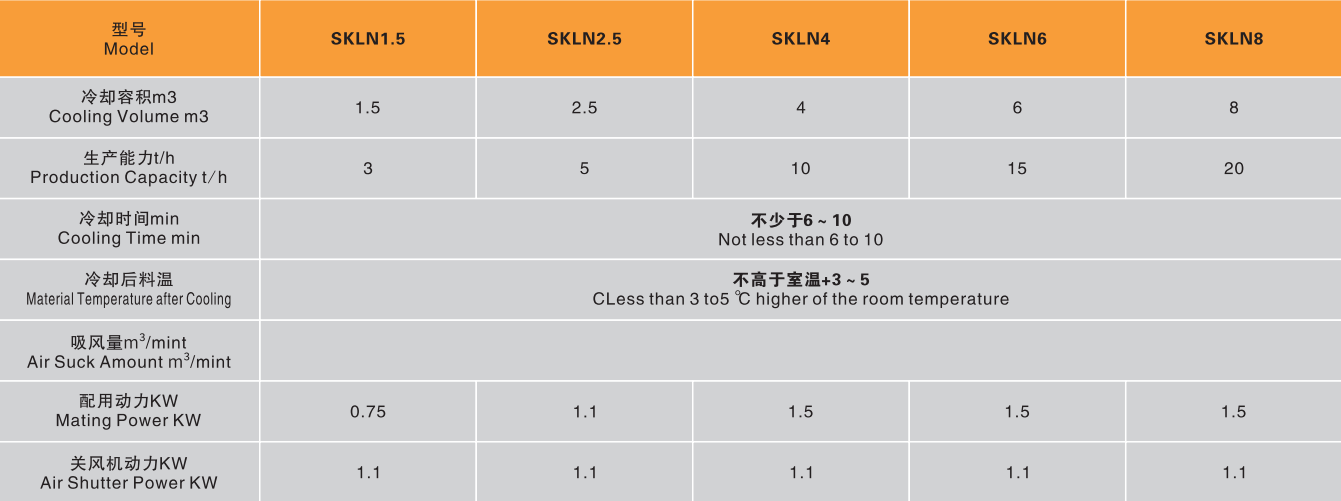

技術參數及型號PARAMETERSAND MODELS
-
